WCP/ADF to OJET: ADF Model to OJET Common Model

This is a post of the series Oracle WebCenter Portal to Oracle JET. In this case I will make another comparison between Oracle ADF Model and Oracle JET Common Model API.

WCP to OJET

How is the Oracle ADF Model

It is not bad to remember that Oracle ADF is based on Java Server Faces 2.2 (Jakarta EE / Java EE). Oracle ADF adds to plain Java Server Faces the following features
  • A Rich set of UI components -> ADF Faces
  • A Model layer to abstract the interaction bewteen the Pages (UI) and the Model. -> ADF Model
  • An implementation of JPA known as Business Components for consuming data from a Database -> ADF Business Components
In Java Server Faces, the Model is implemented by Managed Beans as shown in the following Figure.

JSF Model - Managed Beans

In Oracle ADF, also can be used the ADF Model layer based on the withdrawn JSR-227. This layer is also known as the Binding Layer.

The ADF Controller links a Page (ADF Faces) to a PageDefinition (ADF Model) where Bindings - Iterators - Data Controls are defined for accessing to the data in a common way.


ADF Model

The Model in Oracle JET

Oracle JET uses a Data-Binding between the View and the Model (ViewModel) by using Knockout JS library. The concept is very similar to the ADF Model Page-PageDefinition.

OJET Model

In addition, Oracle JET provides a Common Model API (https://docs.oracle.com/en/middleware/developer-tools/jet/6.2/develop/using-common-model-and-collection-api.html)

The Oracle JET Common Model API offers abstraction for accessing to the data exposed in REST Services similar as Iterators and Data Controls in Oracle ADF.
  • oj.Model defines a type of data
  • oj.Collection allow to iterate and interact with the data defined in the oj.Model
 So the oj.Collection is very similar to CollectionModel in Oracle ADF.

Best Practices for ViewModel - OJET Model

Remark some best practices you can find from other authors of Oracle JET developers / authors such as Geertjan and other contributors.
  • Endpoints Management: Separate the endpoints in a separate JSON file and change the URLs in the after_build.js hook script when building the JET application for different environments.

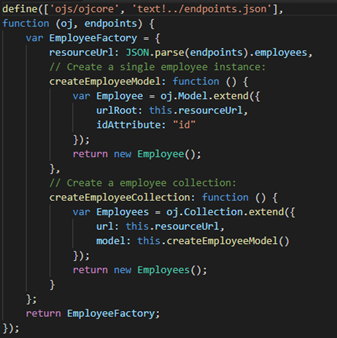

  • Use Classes / Factories separate to the ViewModel files: Decouple the APIs from the ViewModel to promote re-usability.



  • Since Oracle JET 6.0.0+ use oj.xxxDataProvider classes instead of oj.xxxDataSource as the Common Model API is improving to make less effort to integrate Data Services into the Model API.
